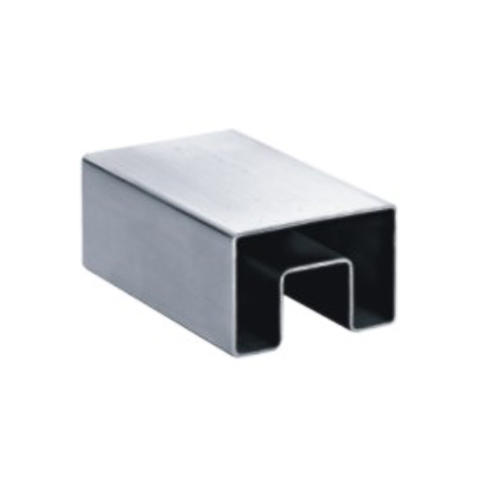

Stainless steel slot tube for handrail

Stainless steel,slot tube for handrail

NO.:1CG-02-4040-1515-12-6000S

Material:201 Satin, 201,40*40mm, groove 15*15mm, thickness 1.2mm, foot 1.1mm, length 6000mm, Satin
NO.:4CG-02-2521-1414-12-5800

Material:304, 304,25*21mm, groove 14*14mm, thickness 1.2mm, length 5800mm
NO.:4CG-02-2521-1414-12-6000

Material:304, 304,25*21mm, groove 14*14mm, thickness 1.2mm, length 6000mm
NO.:4CG-02-2521-1414-12-6000G

Material:304 Golden, 304,25*21mm, groove 14*14mm, thickness 1.2mm, foot 1.08mm, length 6000mm, golden
NO.:4CG-02-2521-1414-12-6000H

Material:304 Black, 304,25*21mm, groove 14*14mm, thickness 1.2mm, foot 1.08mm, length 6000mm, matte black
NO.:4CG-02-2521-1414-12-6000S

Material:304 Satin, 304,25*21mm, groove 14*14mm, thickness 1.2mm, length 6000mm, Satin
NO.:4CG-02-2521-1414-13-6000

Material:304, 304,25*21mm, groove 14*14mm, thickness 1.3mm, length 6000mm
NO.:4CG-02-4040-1515-12-6000

Material:304, 304,40*40mm, groove 15*15mm, thickness 1.2mm, foot 1.1mm, length 6000mm
NO.:4CG-02-4040-1515-15-6000

Material:304, 304,40*40mm, groove 15*15mm, thickness 1.5mm, length 6000mm
NO.:4CG-02-4040-1515-15-6000G

Material:304 Golden, 304,40*40mm, groove 15*15mm, thickness 1.5mm, foot 1.35mm, length 6000mm, golden
NO.:4CG-02-4040-1515-6000SG

Material:304 Satin,Golden, 304,40*40mm, Groove 15*15mm, Length 6000mm, Satin, Gold
NO.:4CG-02-4040-2424-12-3000S

Material:304 Satin, 304,40*40mm, groove 24*24mm, thickness 1.2mm, length 3000mm, Satin
NO.:4CG-02-4040-2424-15-3000S

Material:304 Satin, 304,40*40mm, groove 24*24mm, thickness 1.5mm, length 3000mm, Satin
NO.:4CG-02-4040-2424-15-6000

Material:304, 304,40*40mm, groove 24*24mm, thickness 1.5mm, length 6000mm
NO.:4CG-02-4040-2424-15-6000S

Material:304 Satin, 304,40*40mm, groove 24*24mm, thickness 1.5mm, length 6000mm, Satin
NO.:4CG-02-5025-1515-15-6000

Material:304, 304,50*25mm, groove 15*15mm, thickness 1.5mm, length 6000mm
NO.:4CG-02-5025-1515-15-6000S

Material:304 Satin, 304,50*25mm, groove 15*15mm, thickness 1.5mm, length 6000mm, Satin
NO.:4CG-02-5050-1515-12-6000

Material:304, 304,50*50mm, groove 15*15mm, thickness 1.2mm, length 6000mm
NO.:4CG-02-5050-1515-12-6000S

Material:304 Satin, 304,50*50mm, groove 15*15mm, thickness 1.2mm, length 6000mm, Satin
NO.:4CG-02-5050-2020-20-6000

Material:304, 304,50*50mm, groove 20*20mm, thickness 2.0mm, length 6000mm
NO.:4CG-02-6040-2424-15-6000

Material:304, 304,60*40mm, groove 24*24mm, thickness 1.5mm, length 6000mm
NO.:4CG-02-6040-2424-15-6000S

Material:304 Satin, 304,60*40mm, groove 24*24mm, thickness 1.5mm, length 6000mm, Satin
NO.:6CG-02-5025-1515-15-6000

Material:316, 316,50*25mm, groove 15*15mm, thickness 1.5mm, length 6000mm
NO.:6CG-02-5050-2020-15-6000

Material:316, 316,50*50mm, groove 20*20mm, thickness 1.5mm, length 6000mm
NO.:6CG-02-2521-1414-12-5800

Material:316, 316,25*21mm, groove 14*14mm, thickness 1.2mm, length 5800mm
NO.:6CG-02-2521-1414-12-5800H

Material:316 Black, 316,25*21mm, slot 14*14mm, thickness 1.2mm, length 5800mm, matte black
NO.:6CG-02-2521-1414-12-6000

Material:316, 316,25*21mm, groove 14*14mm, thickness 1.2mm, length 6000mm
NO.:6CG-02-2521-1414-12-6000H

Material:316 Black, 316,25*21mm, groove 14*14mm, thickness 1.2mm, length 6000mm, matte black
NO.:6CG-02-2521-1414-12-6000S

Material:316 Satin, 316,25*21mm, groove 14*14mm, thickness 1.2mm, length 6000mm, Satin
NO.:6CG-02-2521-1414-15-6000S

Material:316 Satin, 316,25*21mm, groove 14*14mm, thickness 1.5mm, length 6000mm, Satin
NO.:6CG-02-4040-1515-15-5850

Material:316, 316,40*40mm, groove 15*15mm, thickness 1.5mm, length 5850mm
NO.:6CG-02-4040-1515-15-6000

Material:316, 316,40*40mm, groove 15*15mm, thickness 1.5mm, length 6000mm
NO.:6CG-02-4040-2424-15-6000

Material:316, 316,40*40mm, groove 24*24mm, thickness 1.5mm, length 6000mm
NO.:6CG-02-4040-2424-5790S

Material:316 Satin, 316,40*40mm, groove 24*24mm, length 5790mm, Satin
NO.:6CG-02-5025-1515-15-6000

Material:316, 316,50*25mm, groove 15*15mm, thickness 1.5mm, length 6000mm
NO.:6CG-02-5050-1515-12-6000S

Material:316 Satin, 316,50*50mm, groove 15*15mm, thickness 1.2mm, length 6000mm, Satin
NO.:6CG-02-508254-1515-15-6000

Material:316, 316,50.8*25.4mm, groove 15*15mm, thickness 1.5mm, length 6000mm
NO.:6CG-02-508254-1515-15-6000S

Material:316 Satin, 316,50.8*25.4mm, groove 15*15mm, thickness 1.5mm, length 6000mm, Satin
NO.:6CG-02-508508-1515-15-3000S

Material:316 Satin, 316,50.8*25.4mm, groove 15*15mm, thickness 1.5mm, length 6000mm, Satin

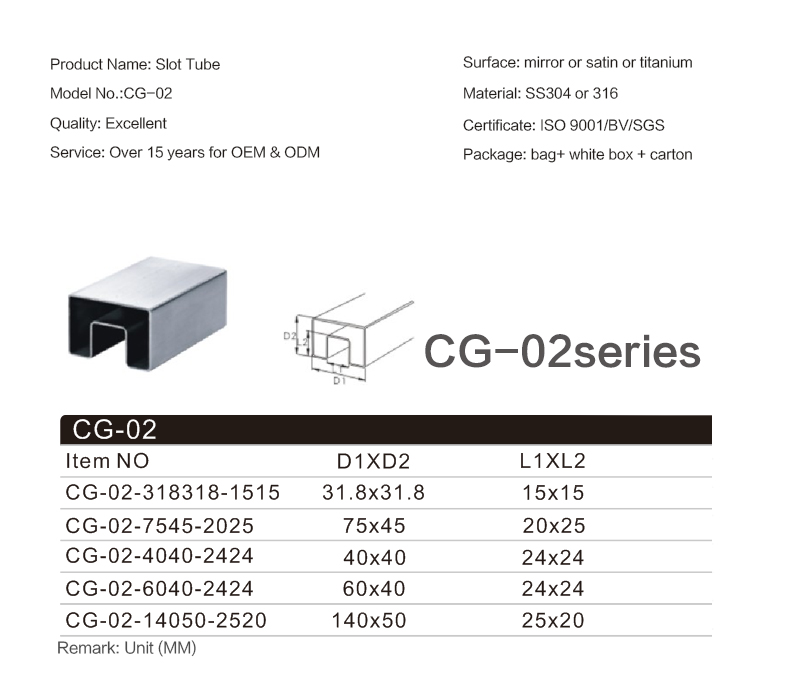

Parameter details

Model	CG-02	Certificate	TUV/BV/ISO/SGS
Material	Stainless Steel 304/316	Service	OEM for 9 years
Surface	mirror/satin	Finish	punching
Size	4040/6040mm	MOQ	100 pcs
ODM& OEM	Accept	Sample lead time	3-15 days
Delivery time	15-30 days after deposit received	Delivery term	By ship, by air or by express
Payment terms	30% deposit,and the balance before shipping;	Package	Plastic bag+cartons or as per customers' request

We are a collection of production, sale and engineering.

Our products include stair posts, handrail balls, brackets, covers, connectors, flanges, glass clamps, elbows and stainless steel tubes. We also produce spider, spigot, floor spring, shower room fittings, rubber seal and handles for glass, door and bathroom use.
