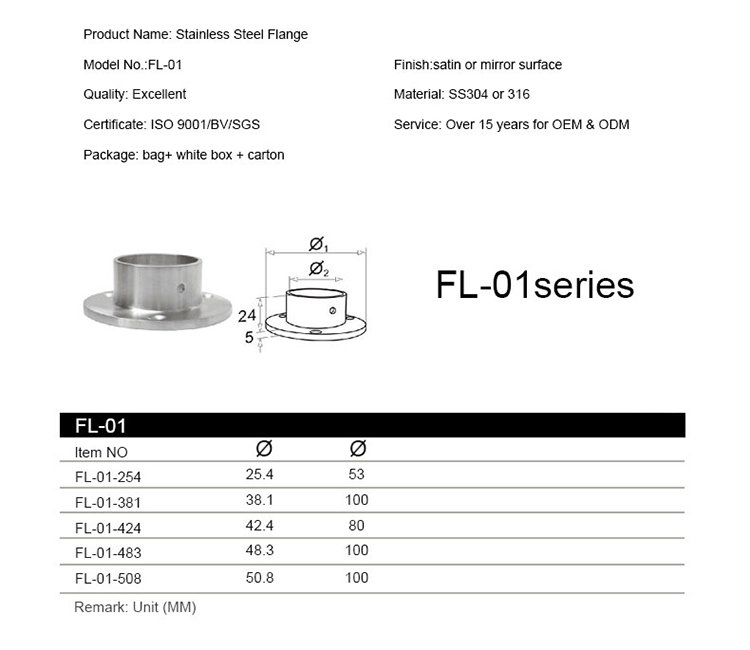

Stainless steel handrail flange

NO.:FL-01-762

Material:304, Size: 76.5mm, for tube 76.2mm, outer diameter: 120mm, surface: mirror
NO.:FL-01-762S

Material:304, Size: 76.5mm, for tube 76.2mm, outer diameter: 120mm, surface:Satin
NO.:FL-01-635

Material:304, Size: 76.5mm, for tube 63.5mm, outer diameter: 113mm, surface:mirror
NO.:FL-01-635S

Material:304, Size: 76.5mm, for tube 63.5mm, outer diameter: 113mm, surface:Satin
NO.:FL-01-508

Material:304, Size: 51.2mm, for tube 50.8mm, outer diameter: 100/90mm, surface:Mirror
NO.:FL-01-508S

Material:304, Size: 51.2mm, for tube 50.8mm, outer diameter: 100/90mm, surface:Satin
NO.:FL-01-424

Material:304, Size: 43mm, for tube 42.4mm, outer diameter: 80mm, surface:Mirror
NO.:FL-01-424S

Material:304, Size: 43mm, for tube 42.4mm, outer diameter: 80mm, surface:Satin
NO.:FL-01-381

Material:304, Size: 38.5mm, for tube38.1mm, outer diameter: 100/80/76mm, surface:Mirror
NO.:FL-01-381S

Material:304, Size: 38.5mm, for tube38.1mm, outer diameter: 100/80/76mm, surface:Satin
NO.:FL-01-254

Material:304, Size:26mm, for tube25.4mm, outer diameter: 53.5mm, surface:Mirror
NO.:FL-01-254S

Material:304, Size:26mm, for tube25.4mm, outer diameter: 53.5mm, surface:Satin
NO.:FL-01-483

Material:304, Size:48.6mm, for tube48.3mm, outer diameter:100mm, surface:Mirror
NO.:FL-01-483S

Material:304, Size:48.6mm, for tube48.3mm, outer diameter:100mm, surface:Satin

Parameter details

Model	FL-01	Certificate	TUV/BV/ISO/SGS
Material	Stainless Steel 304/316	Service	OEM for 9 years
Surface	mirror/satin	Processing Method	casting/punching
Size	850 or Custom Size	MOQ	100 pcs
ODM& OEM	Accept	Sample lead time	3-15 days
Delivery time	15-30 days after deposit received	Delivery term	By ship, by air or by express
Payment terms	30% deposit,and the balance before shipping;	Package	Plastic bag+cartons or as per customers' request

We are a collection of production, sale and engineering.

Our products include stair posts, handrail balls, brackets, covers, connectors, flanges, glass clamps, elbows and stainless steel tubes. We also produce spider, spigot, floor spring, shower room fittings, rubber seal and handles for glass, door and bathroom use.

FL-01(1) FL-01(2) FL-01(4).jpg
