fingerprint password Tuya bluetooth temporary password mechanical key
NO.:SL-ZNS-8302-TUTA-1S-1
NO.:SL-ZNS-8302-TUTA-1S-2

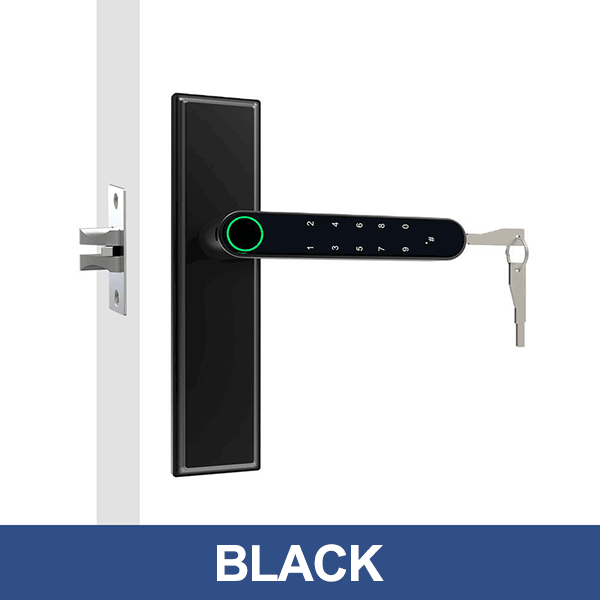

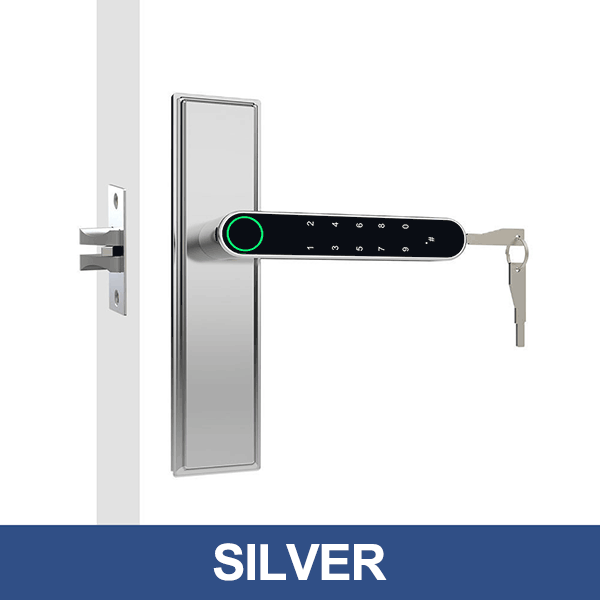

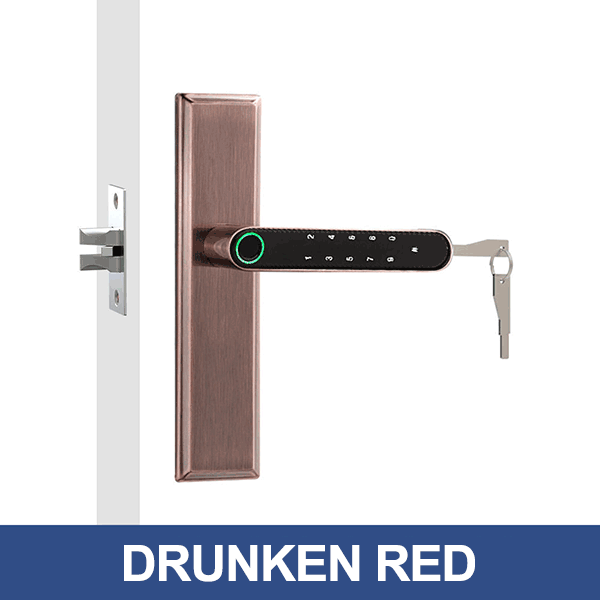

color | Matte black, wine red, bright chrome steel | Single set net weight | 1.18KG |
---|---|---|---|
single set gross weight | 1.38KG | Net weight of one box | 14.16KG |
gross weight of one box | 17.37KG | Packing quantity | 12 sets/carton |
Inner box size | 26*17*9CM | Outer box size | 54*35.5*29CM |
graffiti scheme
1. Unlock method: fingerprint, password, Tuya Bluetooth,Temporary password, five unlocking methods with mechanical key;
2. The number of fingerprint groups: 50, the number of password groups: 40 groups,Number of Bluetooth groups: unlimited.
3. Wiring-free structure, no power cord connection between the front and rear handles.
4. All-metal modular clutch structure,High quality motor drive principle,Safer than solenoid actuated principle clutches.The wiring-free structure is more convenient to install,The modular structure makes the product more stable and reliable.
5. Standard 1000mAh rechargeable lithium battery,It can last 1500 times on a single charge.
6. Human voice navigation.
7. Normally open mode selection.
8. Switch between Chinese and English.
9. Optional Tuya Bluetooth gateway for remote unlocking.
10. Optional double-sided fingerprint unlocking configuration.
11. Standard 50MM single tongue lock, optional 60MM lock,70MM lock, 60-70MM adjustable lock.
12. Suitable door thickness: 38-55MM (please explain if the door thickness exceeds the range).
13. Panel material: 201 stainless steel, handle material: zinc alloy.
14. Panel size: 220MM*50MM, thickness 1.2MM,Equipped with adjustable hole distance bottom plate,Suitable for 110MM-190MM screw hole distance mechanical lock panel replacement.
15. The handle has an emergency lock cylinder,It can be used for both emergency unlocking and mechanical forced recovery to factory settings.
