Smart lock

fingerprint password Tongtong Bluetooth APP temporary password mechanical key

NO.:SL-ZNS-TT7603-FT-1

Basic model
NO.:SL-ZNS-TT7603-FT-2

Double-sided fingerprint
NO.:SL-ZNS-TT7603-FT-3

Gold
NO.:SL-ZNS-TT7603-FT-4

Double-sided fingerprint+Gold

Parameter details

color	Matte black, wine red, bright chrome silver, blue silk gray, PVD gold	Material	zinc alloy for lid handle

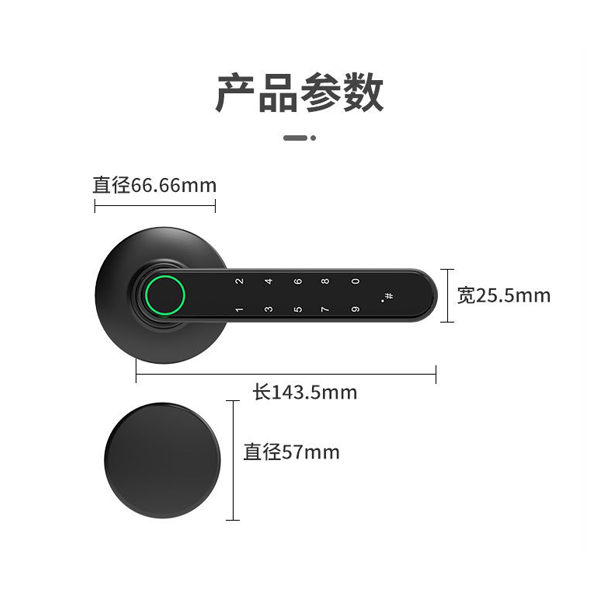

Diameter of handle cover	66.66MM	Lock cylinder decorative cover diameter	55MM
Packaging	standard high-end gift box packaging	Net weight of a single set	1.43KG
net weight of a box	17.16 KG	Gross weight of a single set	1.79 KG
gross weight of a box	22.35KG	Inner box size	25.7017.8010.50CM
Outer box size	533732.50	Packing quantity	12 sets/carton

All solutions

1. Unlock method: fingerprint, password, Tongtong Bluetooth APP,Temporary password, mechanical key five unlocking methods.

2. Number of fingerprint groups: 100 pieces,Number of password groups: 250 groups, number of Bluetooth groups: unlimited.

3. Wiring-free structure, no power cord connection between the front and rear handles.

4. All-metal modular clutch structure,High quality motor drive principle,Safer than solenoid actuated principle clutches.The wiring-free structure is more convenient to install,The modular structure makes the product more stable and reliable.

5. Standard 800mAh rechargeable lithium battery,It can last 1500 times on a single charge. USB charging design.

6. Human voice navigation.

7. Normally open mode selection.

8. Switch between Chinese and English.

9. Optional double-sided fingerprint unlocking configuration.

10. Standard 5072 double fast lock body (liner size: 175*22MM square head)Optional 85 series double fast lock body.

11. The handle has an emergency lock cylinder,It can be used for both emergency unlocking and mechanical forced restoration to factory settings.

12. Compatible door thickness: 38-55MM (please explain if the door thickness exceeds the range).

14. Remarks: choose the aircraft box packaging, the gross weight of a single set: 1.66KG,Gross weight of a box: 20.73KG, inner box size: 26*17*9CM,Outer box size: 54*35.5*29CM.
