Smart lock

fingerprint password Tuya bluetooth temporary password mechanical key

NO.:SL-ZNS-1G2-1

Basic model
NO.:SL-ZNS-1G2-2

Double-sided fingerprint
NO.:SL-ZNS-1G2-3

Magnetic lock

Parameter details

Material	profiled aluminum	handle	zinc alloy

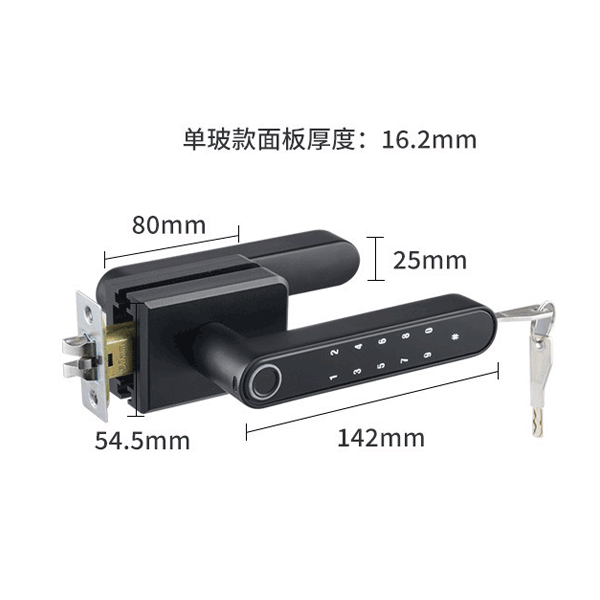

Square cover size	78MM* 54.5MM*16.2MM	Packing	pearl cotton packing in airplane box
Net weight of a single set	0.89 KG	net weight of a box	14.20KG
Gross weight of a single set	1.03KG	gross weight of a box	17.12KG
Inner box size	20.5148CM	Outer box size	42.53034CM
Packing quantity	16 sets/carton

graffiti scheme

1. Unlock method: fingerprint, password, Tuya Bluetooth,Temporary password, five unlocking methods with mechanical key

2. The number of fingerprint groups: 50, the number of password groups: 40 groups,Number of Bluetooth groups: unlimited.

3. Wiring-free structure, no power cord connection between the front and rear handles.

4. All-metal modular clutch structure,High quality motor drive principle,Safer than solenoid actuated principle clutches.The wiring-free structure is more convenient to install,The modular structure makes the product more stable and reliable.

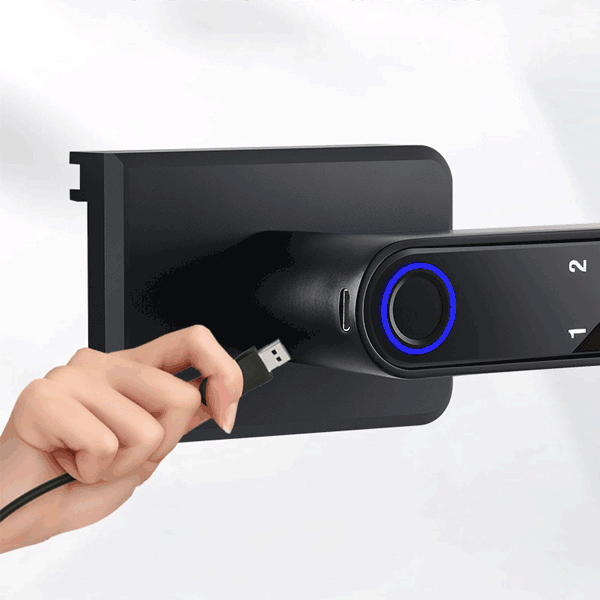

5. Standard 1000mAh rechargeable lithium battery,It can last 1500 times on a single charge.

6. Human voice navigation.

7. Normally open mode selection.

8. Switch between Chinese and English.

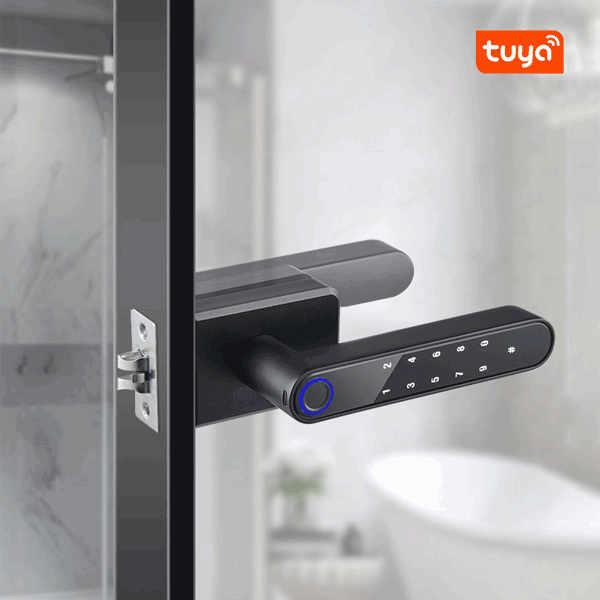

9. Optional Tuya Bluetooth gateway for remote unlocking.

10. Optional double-sided fingerprint unlocking configuration.

11. Standard 18MM profile frame with 50MM lock(Optional 16MM profile frame with 48MM lock),If you need to match other specifications of locks, you need to customize the bottom cover.

12. The handle has an emergency lock cylinder, It can be used for both emergency unlocking and mechanical forced recovery to factory settings.

13. Suitable for single-layer glass door thickness: 5MM-12MM.

14. Matte black is optional for one color.
