fingerprint password Tuya bluetooth temporary password mechanical key
NO.:SL-ZNS-76YX-TUYA
Material | profile aluminum | cylinder diameter | 65MM |
---|---|---|---|
Packaging | Standard aircraft box pearl cotton packaging | Net weight of a single set | 0.79 KG |
net weight of a box | 12.64KG | Gross weight of a single set | 0.93 KG |
Gross weight of a box | 15.52 KG | Inner box size | 20.5*14*8CM |
Outer box size | 42.5*30*34CM | Packing quantity | 16 sets/carton |
graffiti scheme
1. Unlock method: fingerprint, password, card swiping, Tuya Bluetooth, temporary password,Six unlocking methods with mechanical key.
2. The number of fingerprint groups: 40, the number of password groups: 40 groups, the number of cards: 40 groups, the number of Bluetooth groups: unlimited.
3. Wiring-free structure, there is no power line connection between the front and rear handles.
4. All-metal modular clutch structure, high-quality motor drive principle,Safer than solenoid actuated principle clutches. The wiring-free structure is more convenient to install,The modular structure makes the product more stable and reliable.

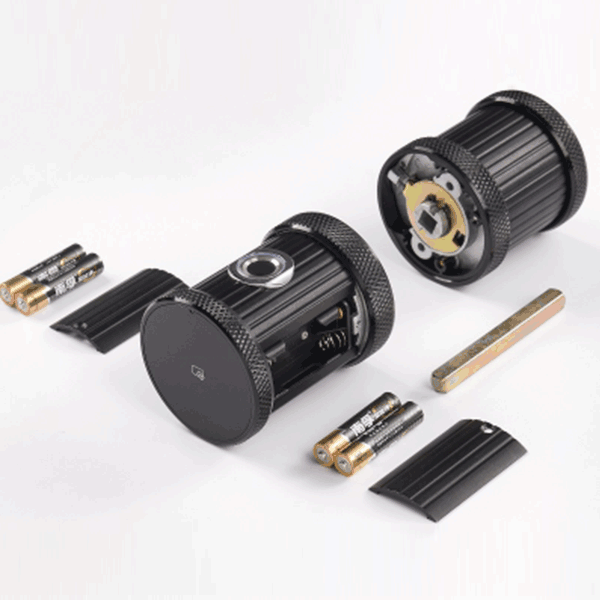

5. Powered by four AAA dry batteries in the front (factory non-standard configuration)USB emergency power supply unlock
6. Human voice navigation.
7. Normally open mode selection.
8. Switch between Chinese and English.
9. Optional Tuya Bluetooth gateway for remote unlocking.
10. The mechanical emergency key can be used both for unlocking and forcibly restoring the factory settings.

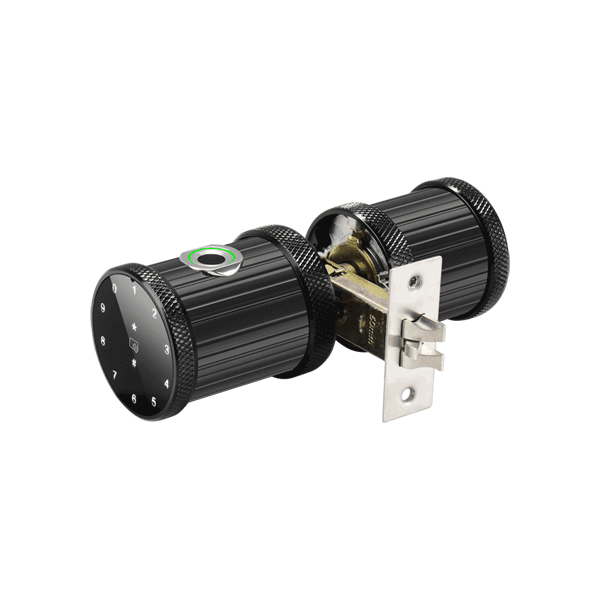

11. Standard 60MM single tongue lock, optional 50MM lock, 70MM lock,60-70MM adjustable lock.
12. The handle has an emergency lock cylinder,It can be used for both emergency unlocking and mechanical forced recovery to factory settings.
13. Suitable door thickness: 35-55MM (please explain if the door thickness exceeds the range).
14. Oxidation two-color optional matte black, sanding silver.
