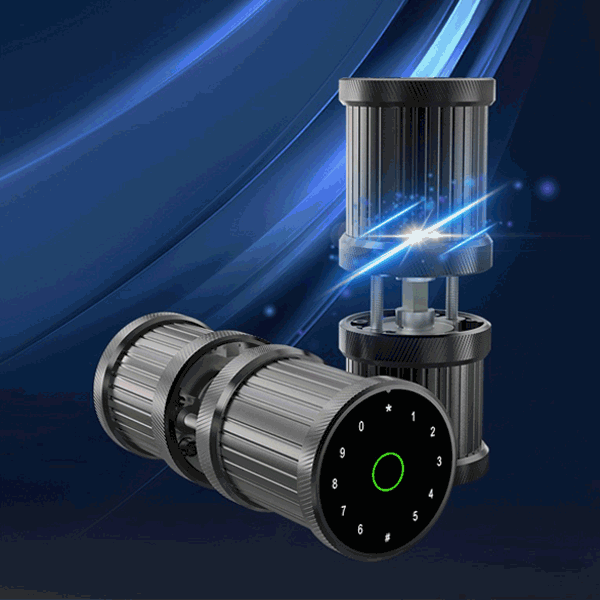

fingerprint password Tuya bluetooth temporary password Aging password mechanical key
NO.:SL-ZNS-76YX-C-TUYA
Material | profile aluminum | cylinder diameter | 65MM |
---|---|---|---|
Packaging | Standard aircraft box pearl cotton packaging | Net weight of a single set | 0.76KG |
net weight of a box | 12.16KG | Gross weight | 0.90 KG |
gross weight of a box | 15.04KG | Inner box size | 20.5*14*8CM |
Outer box size | 42.5*30*34CM | Packing quantity | 16 sets/carton |
graffiti scheme
1. Unlock method: fingerprint, password, Tuya Bluetooth,
Temporary password, aging password, mechanical key six unlocking methods.
2. The number of fingerprint groups: 50, the number of password groups: 40 groups, the number of Bluetooth groups: unlimited.
3. Wiring-free structure, there is no power line connection between the front and rear handles.
4. All-metal modular clutch structure, high-quality motor drive principle,
Safer than solenoid actuated principle clutches.
The wiring-free structure is more convenient to install,
The modular structure makes the product more stable and reliable.
5. Standard 800mAh rechargeable lithium battery,
It can last 1500 times on a single charge. USB charging design.
6. Human voice navigation;
7. Normally open mode selection;
8. Switch between Chinese and English;
9. Optional Tuya Bluetooth gateway for remote unlocking.
10. The mechanical emergency key can be used both for unlocking and forcibly restoring the factory settings.

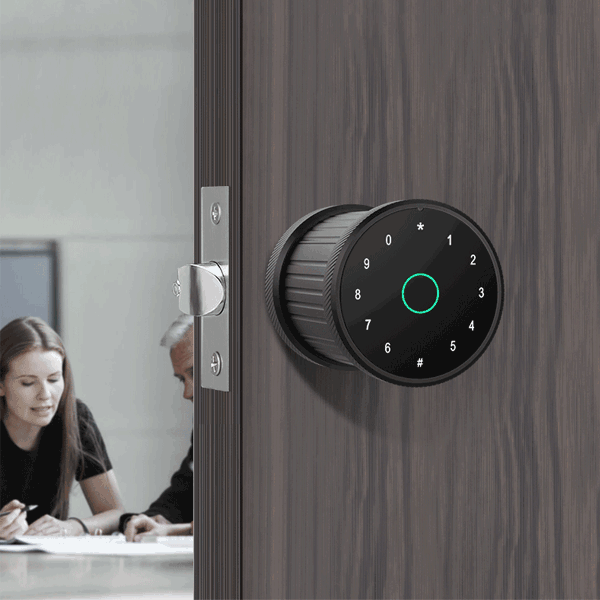

11. Standard 60MM single tongue lock, optional 50MM lock,
70MM lock, 60-70MM adjustable lock;
12. The handle has an emergency lock cylinder,
It can be used for both emergency unlocking and mechanical forced recovery to factory settings;
13. Suitable door thickness: 35-55MM (please explain if the door thickness exceeds the range)

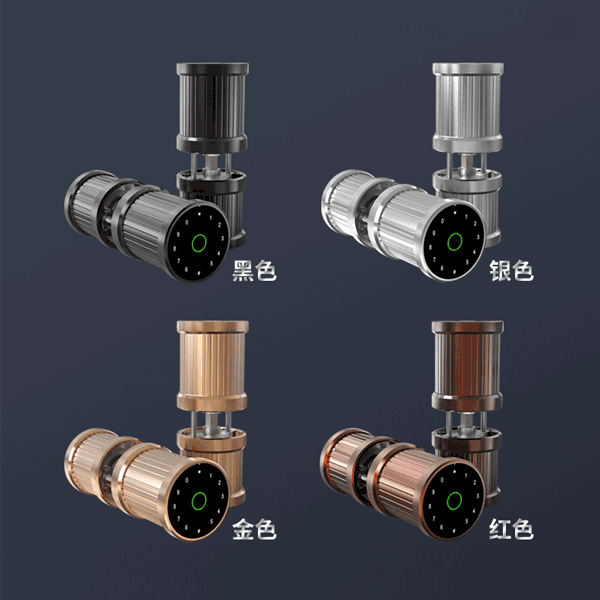

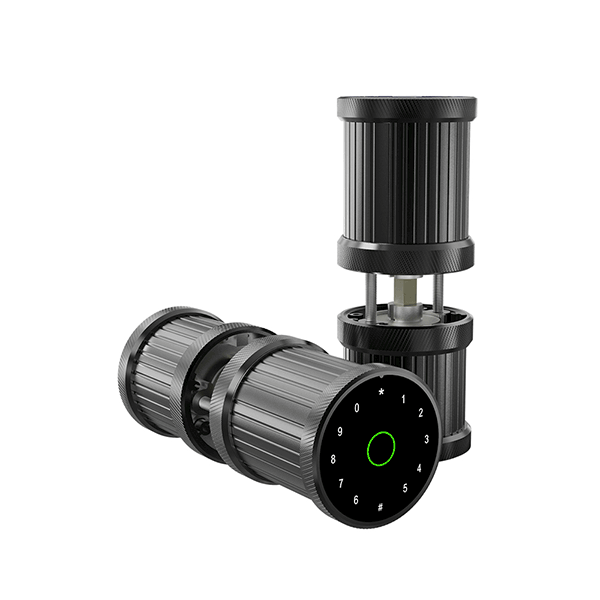

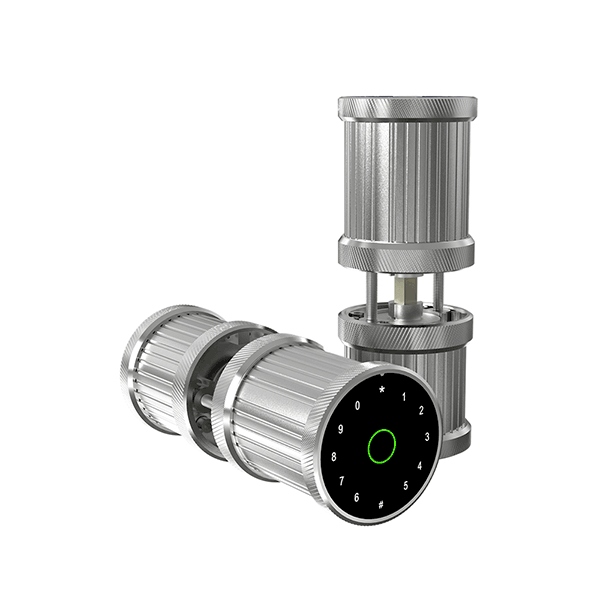

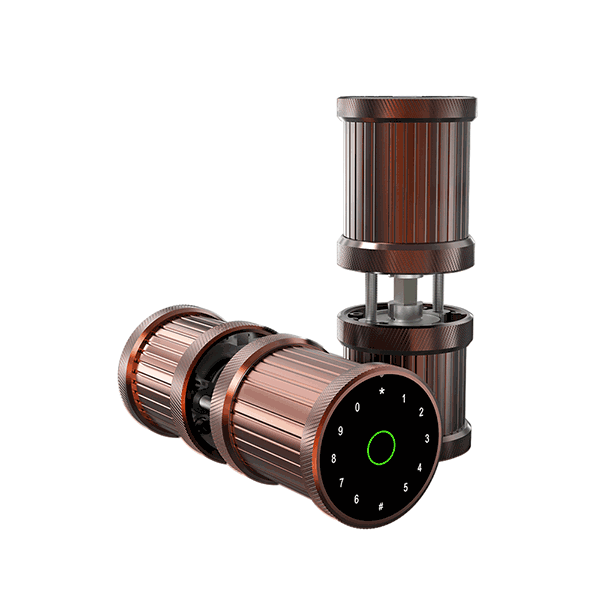

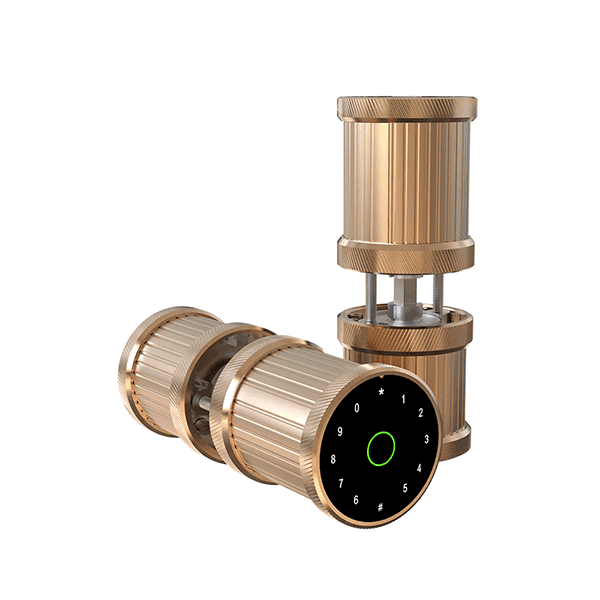

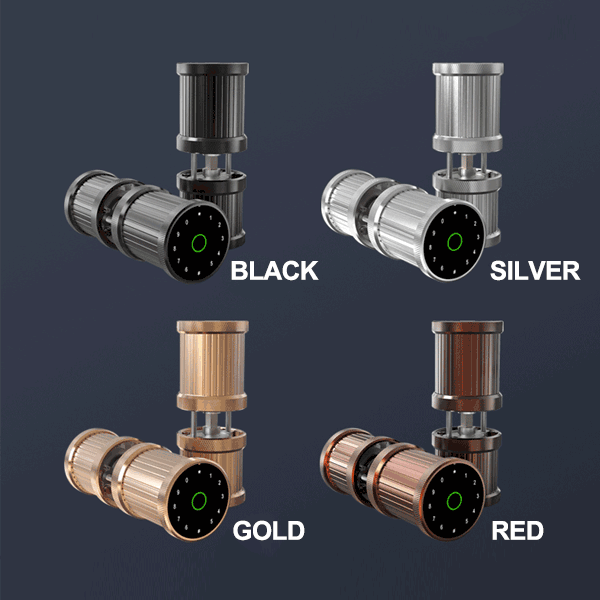

14. Oxidized four-color optional matte black, coffee red, champagne gold, sanded silver;
