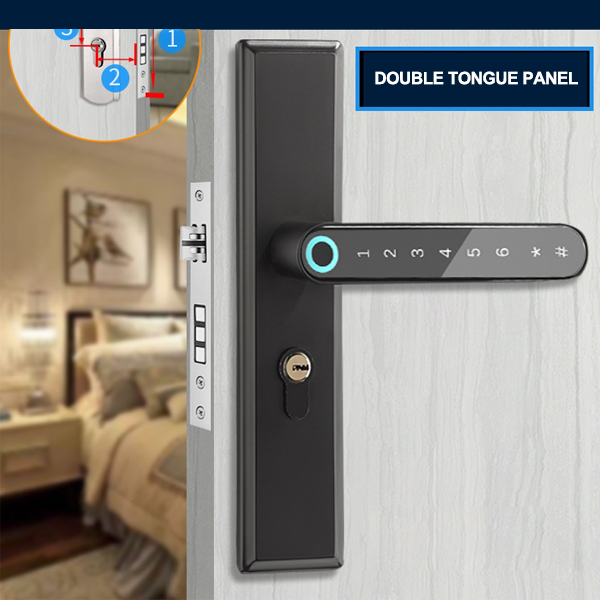

Smart Lock

Smart Lock

fingerprint password Tuya bluetooth temporary password mechanical key

  • NO.:SL-ZNS-8305-TUYA-2S

    SL-ZNS-8305-TUYA-2S
Parameter details
Panel material
201 stainless steel
handle material
zinc alloy
color
steel color, drunken red, black
Gross weight of a single set
1.78KG
Gross weight of a box
22KG
Inner box size
26*17*9CM
Outer box size
54*35.5*29CM
Packing quantity
12 sets/box

1. Unlock method: fingerprint, password, Tuya Bluetooth,

Temporary password, several unlocking methods.

2. Number of fingerprint groups: 20 pieces,

Number of password groups: 20 groups,

Number of Bluetooth groups: unlimited.

3. Wiring-free all-metal modular clutch structure,

High quality motor drive principle,

Safer than solenoid actuated principle clutches.

The wiring-free structure is more convenient to install,

The modular structure makes the product more stable and reliable.

4. Standard 800mAh rechargeable and removable lithium battery,

1500 times of battery life on a single charge;

5. Human voice navigation;

6. Normal open mode selection;

7. Chinese and English switching;

8. Standard 5050 double fast linkage fake mortise lock body(Liner size: 147*22MM),

160MM, 165MM, 170MM, 175MM, 180MM, 190MM,

200MM, 240MM liner length is optional;

9.standard false mortise lock cylinder, three computer keys

10. Suitable door thickness: 38-55MM

(The door thickness exceeds the range, please explain)

11. Panel material: 201 stainless steel, handle material: zinc alloy;

12. Panel size: 220MM*50MM, thickness 1.2MM,

Equipped with adjustable hole distance bottom plate,

Suitable for 110MM-190MM screw hole distance mechanical lock panel replacement
